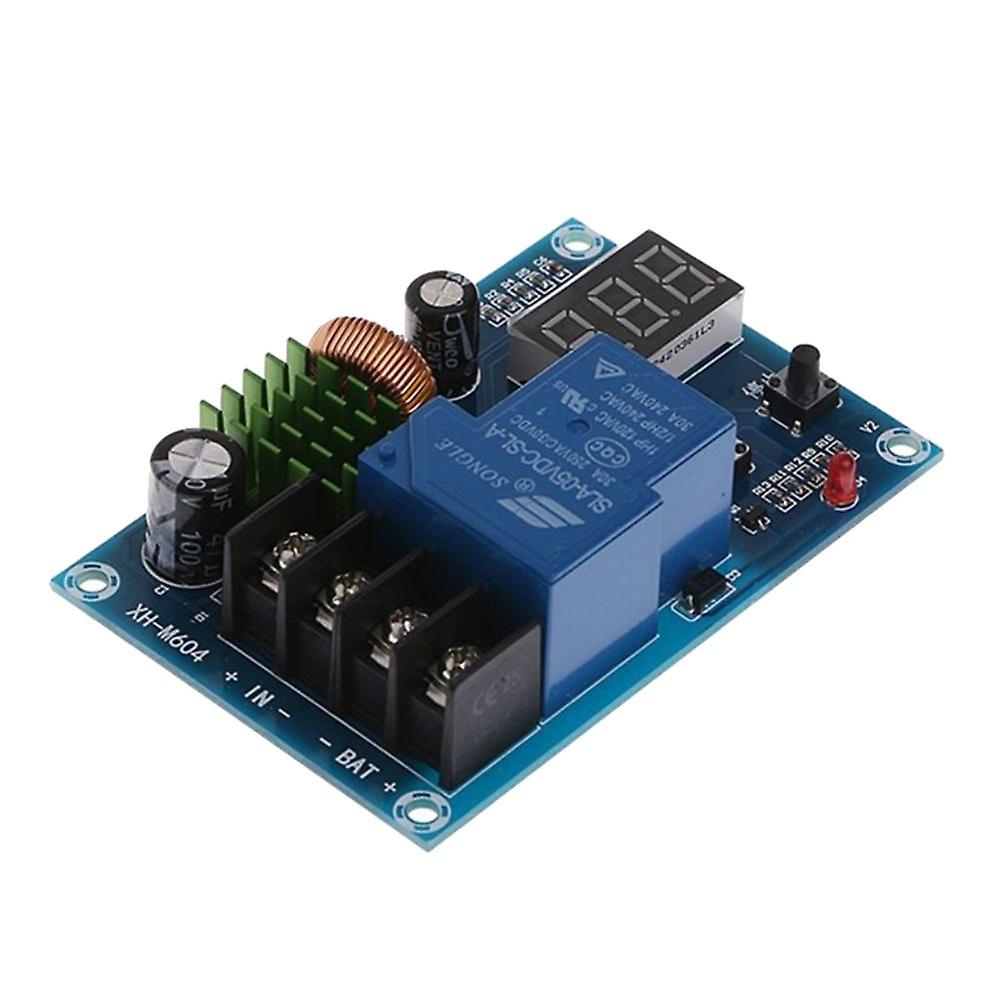

Voltage converter -xh-m604 dc6-60v switch power supply module battery charging control board charger Highlights generic brand xh-m604 dc6-60v switch power supply module control board charger Description: Apply for: 6-60V MAX 80V battery Use: In the setting voltage value, the start button read button is lifted, about the key of the role of the start button stop down. 1. Set the start voltage: Display voltage normal state, press a start voltage button to display the initial charge voltage. long Press the start button, digital flashes, by the start and stop button, set the initial charging voltage value. 2. Set the shutdown voltage: Normal normal voltage display mode, press a shutdown voltage button to display the shutdown charging voltage. long Press the Stop button, the digital flashes, by the start and stop button, set the charging stop voltage value. 3. Setting error: activated state by holding down the on/off button, digital display 888, which is the factory setting. specification: Input voltage: DC 6-60V Display accuracy: 0.1V Control accuracy: 0.1V Output type: direct output Voltage tolerance: 0.1V Apply for: 6-60V MAX 80V battery Material: coated laminate of FR-4 fiberglass Dimension: 81x54x19 mm / 3.18x2.12x0.74 inch Package includes: Lead Acid Battery Charging Control Module
