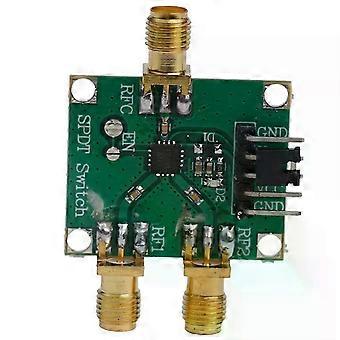

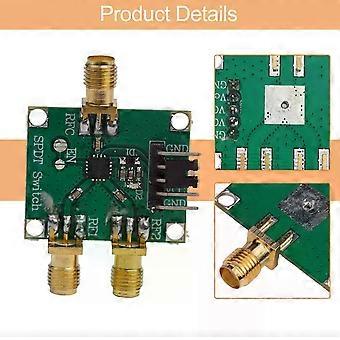

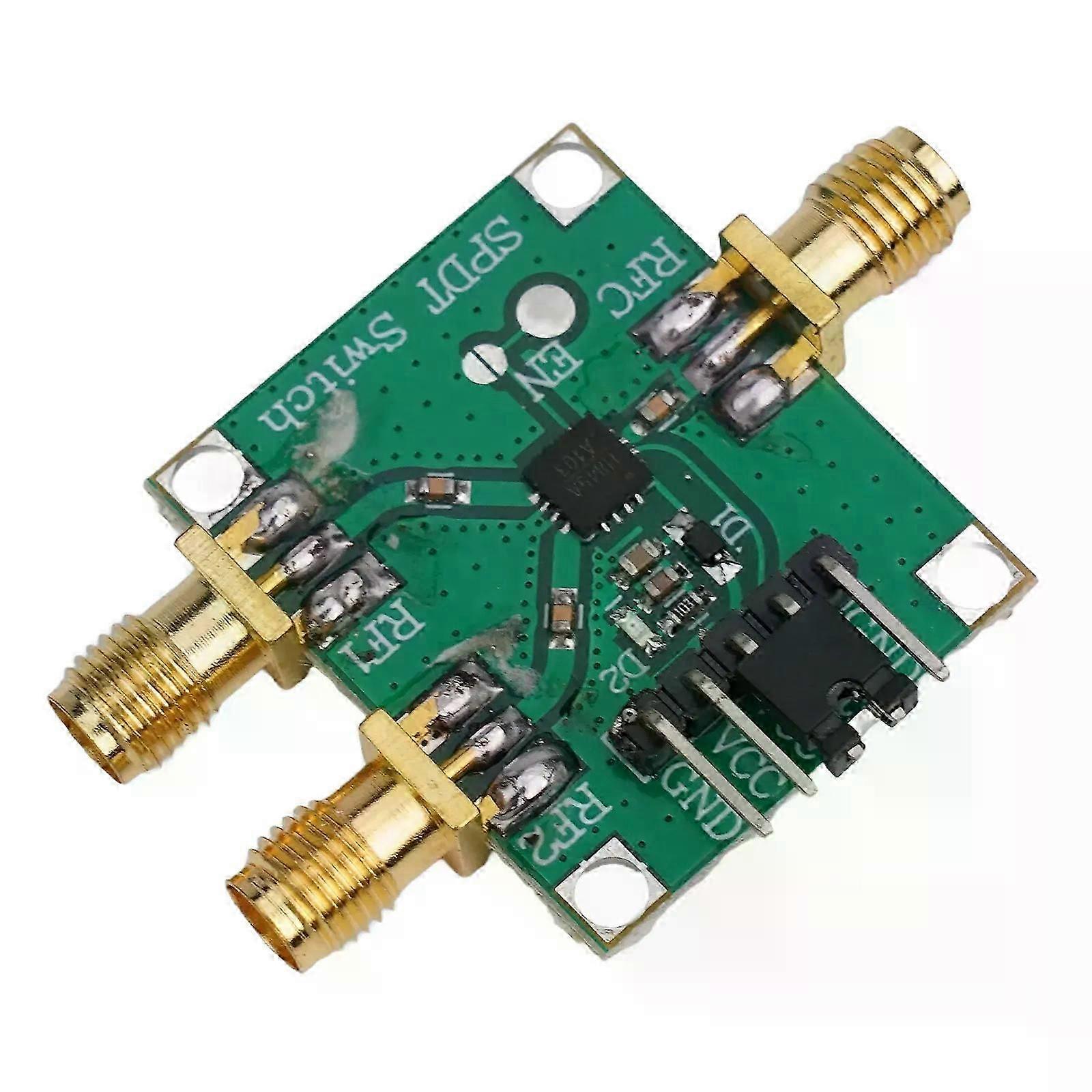

One HMC849 RF switch module, 6GHz single-pole double-throw module board, suitable for test equipment accessories One HMC849 RF switch module, 6GHz single-pole double-throw module board, suitable for test equipment accessories Product Features: * Brand new, high quality * Made with premium materials, rugged and durable * HMC849 RF switch module, 6GHz single-pole double-throw module board, with wide bandwidth and high isolation * The HMC849 ALP4CE is a high-isolation, reflection-free DC to 6GHz GaAs pHEMT single-pole double-throw switch in a low-cost, lead-free package. * For cellular/WiMAX/4G infrastructure applications, this switch provides up to 60dB of isolation, as low as 0.8dB of insertion loss, and +52dBm input I-P3. * This switch has excellent power handling capabilities in the 5-6GHz WiMAX band, achieving P1dB compression. +31 dBm point. * The circuitry on the PCB allows for positive voltage control of 0/+3V or 0/+5V with extremely low DC current.* If the input (EN) is set to logic high, the switch is in the "fully off" state. Specifications: Product Name: HMC849 RF Switch Module Material: PCB Circuit Board Color: Green High Isolation: Up to 60 dB Single Positive Voltage Control: 0/+3V to +5V High Input I-P3: +52 dBm Dimensions: 2.5*3cm (excluding SMA portion protrusion) Reflection-free Design "Fully Off" State 16-4x4 mm OFN Package: 16mm² Applications: * HMC849ALP4CE for * Mobile/4G Infrastructure * WiMAX, WiBro and Fixed Wireless Networks * In-vehicle Information Systems * Mobile Radios * Test Equipment Package Contents: 1 x HMC849 RF Switch Module Notes: 1. Due to factors such as monitor brightness, the actual color of the product may differ slightly from the image displayed on the website. 2. Please allow for slight manual measurement errors in the data.
