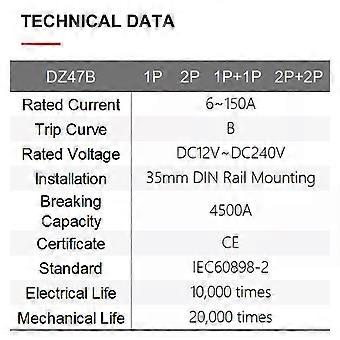

DZ47-B Mini Circuit Breaker(type B MCB), dedicated to the electric motorcycle, and mainly used for over-load and short-circuit protection in DC circuits with rated voltage of 12V-240V for single-pole and rated current of 150A. In normal condition, it can switch infrequently the electric equipments and lighting circuits. This DZ47-B type B Circuit Breaker complies with the standards of GB10963.1 and IEC60898-1.Technical Parameters Rated current: 6,10,16,20,25,32,40,50,63,80,100,125,150A Rated operating voltage: DC12V-240V Trip Curve: B-type curve (3ln ~ 5ln) Wiring: 6 ~ 63A, can be connected to max wires of 16mm(6AWG); 80 ~ 150A, can be connected to max wires of 35mm(2AWG) Operating ambient temperature:-30 C to +70 C Feature The newly designed flame-retardant shell and high-quality standard internal components can ensure a long-term practical life while increasing the aesthetics and upgrading the grade.The use of custom-made coils and other parts can effectively protect the car circuit and prevent damage to the circuit when the battery is short-circuited and overloaded. Mounting Method1, Method one: DZ47B can be fixed on DIN rail directly or placed in a distribution box;2, Method two: screws fixed, use 3mm or belown screws to fix circuit to wall or panelPackage Include1 x Battery Protection Switch(TIP:1P+1P/2P+2P will gift one bus bar)
