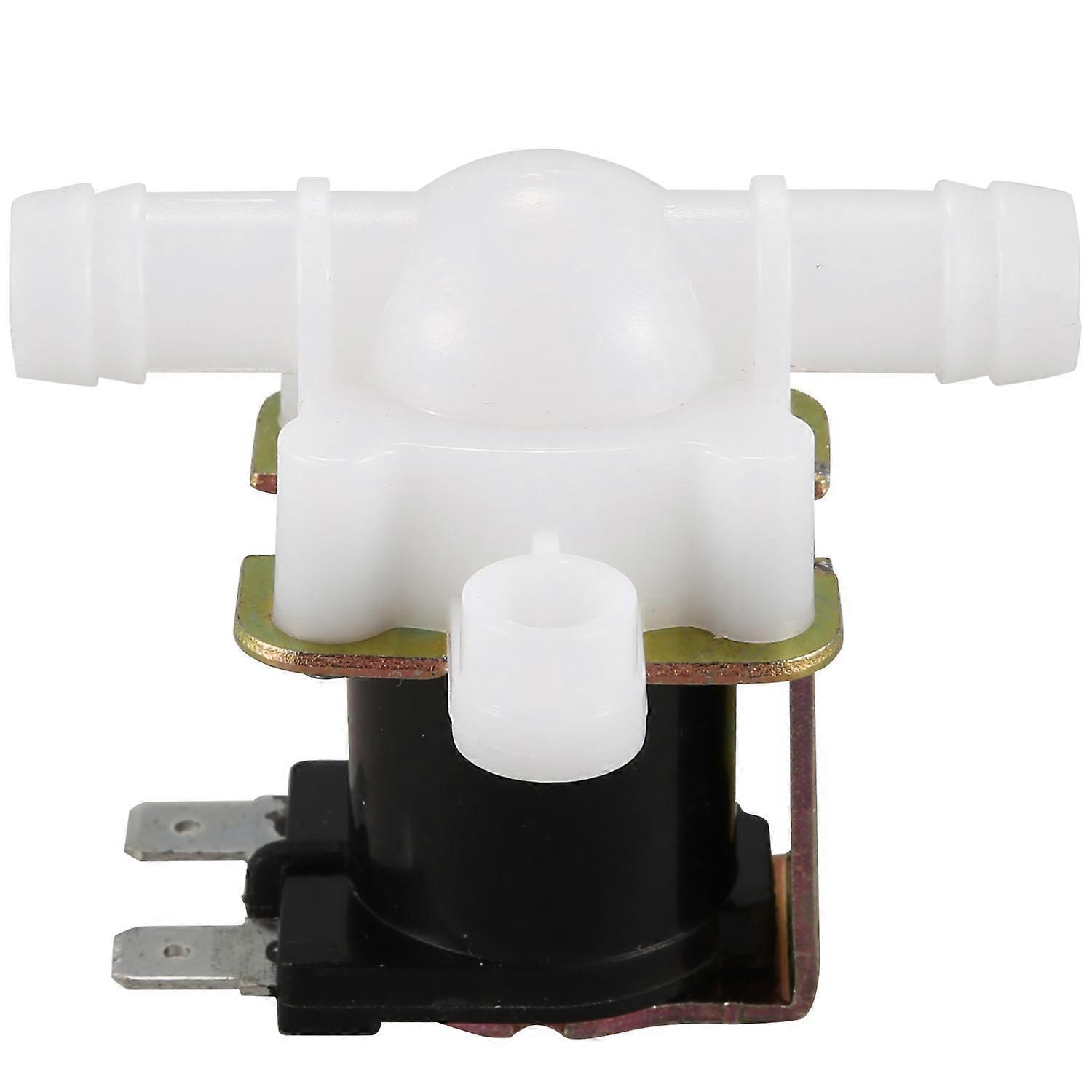

These 12-Volt DC electric solenoid valves with barbed inlet and outlet ports are great for projects. A model: These types of valves are often used for automatic faucets, foot operated faucets, drinking fountains etc. NOTE A model: note that diaphragm-type solenoid valves are NOT suitable for gravity-fed (. draining liquids out of containers or tanks without using a pump) because of the 3 psi minimum pressure requirement. Check other auctions for direct acting valves which are suitable for gravity-fed . B model: This routine for no pressure valve, apply to 0-0.2 MPA water pressure, used in ordinary water machine! Water flow characteristic: 0.02 Mpa 0.4 L/min; 0.10 Mpa 1.5 L/min; 0.30 Mpa 3.5 L/min; 0.80 Mpa 6 L/mi. This valve is normally closed type solenoid valve, the electricity on (water), power off(no water), in the direction of flow is towards the direction (reverse connect does not work) As name suggests,pressure is the water pressure,No pressure that is no water pressure.Pressure applied to 0.02 ~ 0.8Mpa water pressure,no pressure applied to 0 ~ 0.2Mpa water pressure.Solenoid valve that not using within the range of normal pressure can not work normally. colour:white & black material:metal & Plastic size: 63*55mm type:no Pressure Voltage: 12-Volt DC Current: 450 mA Operation Mode: Normally Closed (Valve opens when energized) Valve Type: Diaphragm Valve (Servo operated) Inlet/Outlet Ports: Hose barbs for 3/8inch ID hose (ID = inside diameter) Pressure Rating: --A model: 3-140 psi(0.028Mpa) Suitable Media: Water, Low Viscosity Fluids Temperature Limitations: Maximum Fluid Temperature 195 Fahrenheit Valve Response Time: Fast Acting Filter Screen: Stainless Steel Inlet Filter Spring: Stainless Steel ( 316) Plunger: Stainless Steel ( 430) Plunger Tip: Silicon Rubber Diaphragm: Nitrile Butadiene Rubber (NBR) Diaphragm Plate: Polyoxymethylene () Mounting Screws: 3 mm (not included) Mounting Position: Any Estimated Valve Life: More than 300,000-500,000 Cycles packaging details: 1*Electric Solenoid Valve Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
