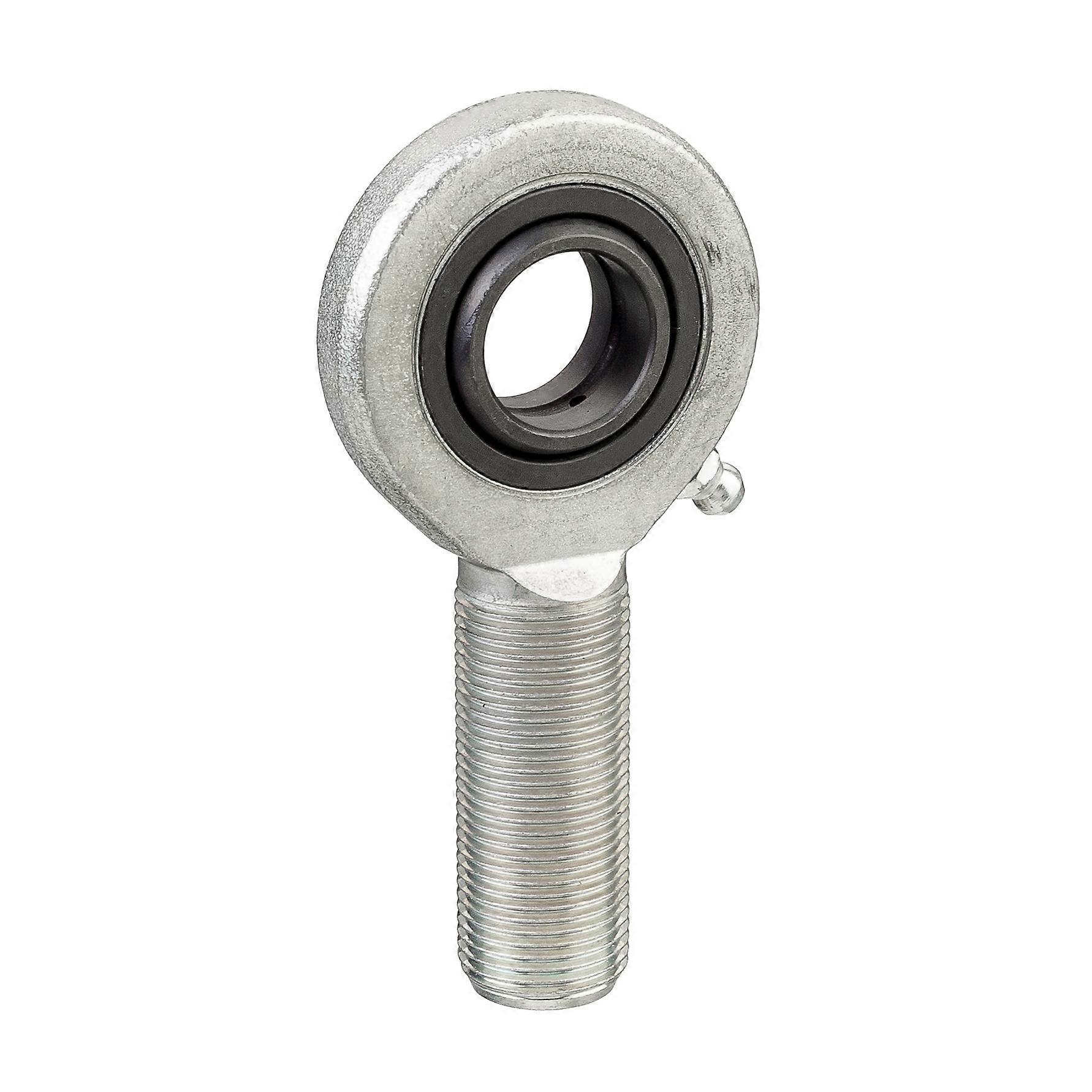

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90-degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female. Specifications Bore diameter d: 30mm. Diameter head d2max: 66.5mm. Width inner ring B: 22mm. Width head C1max: 29mm. Height shank end face - centre rod end eye h2js13: 51mm. Angle of tilt : 6. Raceway diameter inner ring dk: 40.7mm. Diameter welding shank d5max: mm. Diameter centering pin at welding shank end d6: mm. Length (height) housing l6max: 85mm. Distance shank chamfer - centre rod end eye l7min: mm. Length chamfer at welding shank end l8: mm. Chamfer dimension bore r1min: 0.6mm. Basic dynamic load rating C: 62kN. Basic static load rating C0: 110kN. Specific dynamic load factor K: 100N/mm. Material constant KM: 330.
