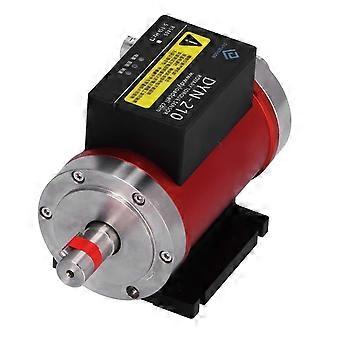

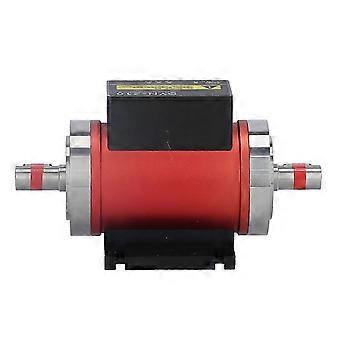

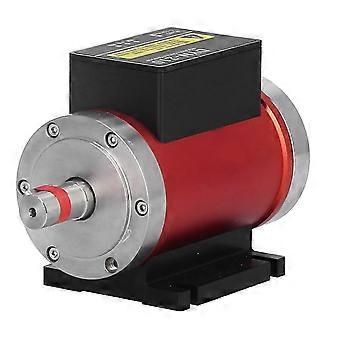

Feature:1. The rotating torsion sensor can display the current measured torsion value and speed value in real time, and can directly calculate the current power value.2. Support RS485 communication, and support active upload protocol, communication rate up to 500 times per second.3. Using strain gauge electrical measurement technology, the electrical signal of the elastic shaft torsion can be measured by supplying power to the strain bridge.4. Can perform simple calibration, zero adjustment, filtering and other operations, allowing 200% overload.5. The rotating torsion sensor has an accuracy of more than 1/1000 and has excellent zero position stability.6. Widely used in the detection of torsion, speed and power of motors, generators, reducers, and diesel engines.Specification:Item Type: Rotating Torsion SensorMaterial: Stainless steelModel: DYN-210Speed Range: 15000rpmSpeed Signal: 120/60/10pulse/r, 4-20mA, 0-20mA, 0-5V, 0-10VTorsion Signal: 5-15KHzZero Output: 2%F.S.Non Linearity: 0.1%F.S.Hysteresis: 0.5%F.S.Repeatability: 0.2%F.S.Creep (30 Minutes): 0.03%F.S.Temperature Sensitivity Drift: 0.01%F.S./10Zero Temperature Drift: 0.01%F.S./10Response Time: 0.6ms (50% response)Response Frequency: 1kHzMaximum Torsion Angle: 2.60 x 10rad (0.149)Moment of Inertia: 0.38kg/cmRotor Vibration Natural Frequency: 19.4kHzTorsion Constant: 3.85 x 10Nm/radAnnual Stability: 0.3%/yearLoad Resistance: >2kWorking Voltage: DC24V 0.2ACurrent Consumption: <200mAWorking Environment: -10-50 0-85%RHSafe Overload: 200%Ultimate Cable Tension: 10kg.Package List:1 x Rotating Torsion Sensor1 x Chinese English User ManualNote:1. Strictly forbidden to disassemble or knock accurate instruments.2. When turning on the power, make sure that other signal wires are not short circuited.3. When the no load torsion value of the installation test is large, adjust the coaxiality of the tooling.4. To ensure stability, the sensor housing and shielding wire must be grounded.5.The factory test parameters shall prevail.
