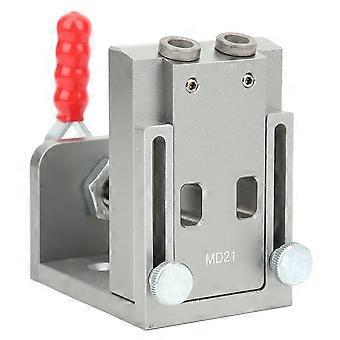

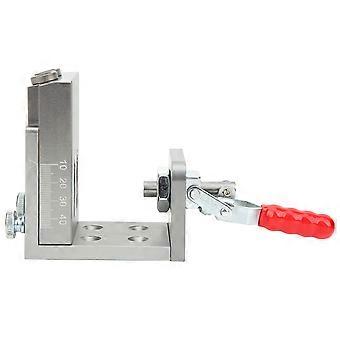

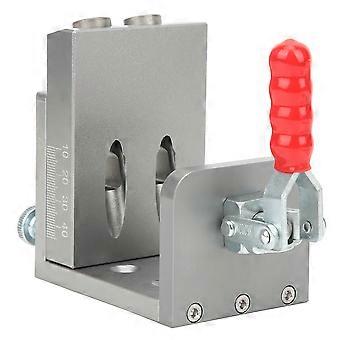

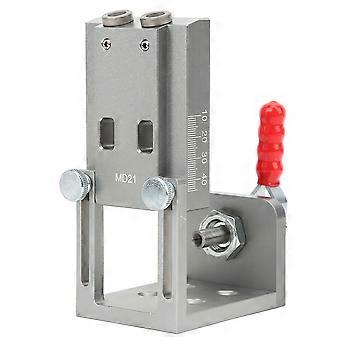

Item Type: Oblique drill hole locator <br>Material: Aluminum alloy <br>Maximum Drilling Depth: 40mm <br>Maximum Thickness Clamped: 12-22mm <br>Drill Bit Size: Approx. 4 x 9 x 170mm / 0.2 x 0.4 x 6.7in <br>Angle of Oblique Hole: 15° <br>Fixing Method: Push-pull clamp fixed <br>Size: <br>Approx. 103mm / 4.1in <br>Approx. 64mm / 2.5in <br>Approx. 89mm / 3.5in <br>Approx. 56mm / 2.2in <br>Approx. 91mm / 3.6in<br>1、Accurate scales keeps accurate alignment, which can be adjusted according to the thickness of the plate. <br>2、15° angled hole splicing more sturdy and firmer and such locator can support high practicality to furniture. <br>3、Enlarged chip hole, smoothing chip removal and more labor&#8209;saving hole&#8209;drilling. <br>4、The upgraded version of the original style is accurately positioned, not easy to slip, and easy to punch. <br>5、Made of aluminum alloy materials in high quality, oblique drill hole locator keeps push&#8209;pull clamp fixing method.<div>1 x Main Board</div><div>1 x Base</div><div>1 x Clamping Plate</div><div>1 x Quick Clip</div><div>1 x Anti-Slip Pressure Plate</div><div>3 x Hex Screw</div><div>1 x 9mm Inclined Hole Drill Bit</div><div>1 x Screwdriver</div><div>2 x Thumb Screw</div><div>2 x Gasket</div><div>2 x Limit Ring</div><div>3 x Hex Wrench</div><div>1 x User Manual (Chinese and English)</div>
